Installing .NET Framework 3.5 with MDT 2013 the simple way

In my case I need to automate the installation of .NET 3.5 within a MDT 2013 build and capture task sequence for Windows 8.1

In the State restore add a step to set the WindowsSource Path
The Windows Source will be located within the Operating Systems folder on your Deployment Share

  1. Add a Set Task Sequence Variable step
    1. Type Task Sequence Variable: WindowsSource
    2. Type Value for your source files: %deployroot%\Operating Systems\Windows 8.1 x64 Enterprise VL\Sources\SXS

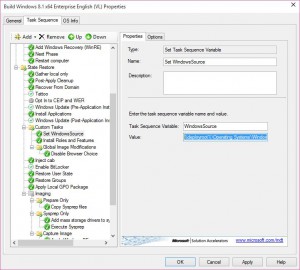

Set Task Sequence Varable

  1. Add a Install Roles and Features step
    1. Select your Operating System within the step
    2. Mark .NEt Framework 3.5 (Includes .NET 2.0 and 3.0)

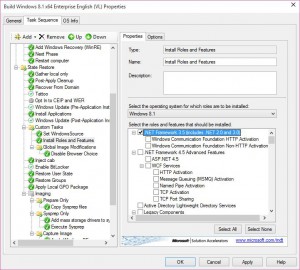

InstallRoles step MDT

Is it that simple? Yes!

NOTE: If you want to use a Run Command Line to install it, you could use something like this: DISM.exe /online /enable-feature /featurename:NetFX3 /All /Source:”%deployroot%\Operating Systems\Windows 8.1 x64 Enterprise VL\Sources\SXS” /LimitAccess
